<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="Escritura">
<xs:annotation>
<xs:appinfo>
<hj:entity xmlns:hj="http://hyperjaxb3.jvnet.org/ejb/schemas/customizations">
<orm:sequence-generator name="Generator_ESCRITURA" sequence-name="SEQ_ESCRITURA" xmlns:orm="http://java.sun.com/xml/ns/persistence/orm" />
</hj:entity>
</xs:appinfo>
<xs:documentation>Define o conjunto de elementos comuns a todas as escrituras.</xs:documentation>
</xs:annotation>
<xs:sequence>
<xs:element name="protocolo" type="nsS:Protocolo">
<xs:annotation>
<xs:documentation>Dados do Protocolo Registrado no livro de protocolo de escrituras.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="assinadaServentia" type="xs:boolean" />
<xs:element name="enderecoAssinatura" type="nsS:Endereco" minOccurs="0" />
<xs:element name="intervenientes" type="nsS:ParteEscritura" minOccurs="0" maxOccurs="unbounded" />
<xs:element name="dispensaTestemunha" type="xs:boolean" />
<xs:element name="testemunha" type="nsS:Pessoa" minOccurs="0" maxOccurs="unbounded" />
<xs:element name="objetoNegocio" type="nsS:ObjetoNegocio" minOccurs="0" maxOccurs="unbounded" />
<xs:element name="valorNegocio">
<xs:simpleType>
<xs:restriction base="xs:decimal">
<xs:fractionDigits value="2" />
</xs:restriction>
</xs:simpleType>
</xs:element>
<xs:element name="clausulaGeral" type="xs:string" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Cláusulas gerais pertencentes à escritura.</xs:documentation>
<xs:appinfo>
<hj:basic xmlns:hj="http://hyperjaxb3.jvnet.org/ejb/schemas/customizations">
<orm:lob xmlns:orm="http://java.sun.com/xml/ns/persistence/orm" />
</hj:basic>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="seloVinculado" type="nsS:SerieSelo" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Se houver outros selos na escritura, referentes a atos vinculados, informar os números dos selos de fiscalização utilizados.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="registro" type="nsS:Registro">
<xs:annotation>
<xs:documentation>Informações do registro da escritura.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="itbi" type="nsS:ImpostosTaxas" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Informações da cobrança de ITBI na escritura.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="tipoAtoVinculado" type="xs:int" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Código dos tipos de Atos praticados vinculadamente ao ato principal da escritura, conforme tabela padronizada 3.19.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="tipoRegistroAverbacao" type="xs:int" minOccurs="0">
<xs:annotation>
<xs:documentation>Código do tipo de de registro/averbação, conforme tabela padronizada.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
|

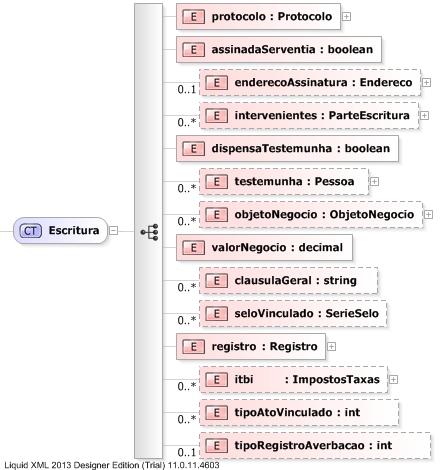

XSD Schema Diagram:
