Documentation for Selo Digital de Fiscalização v.2.0
Definition Type: Element
Name: herdeiro
Namespace: http://www.tjsc.jus.br/selo/XMLSchema
Type: nsS:ParteEscritura
Containing Schema: xsEInventarioPartilha.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract False

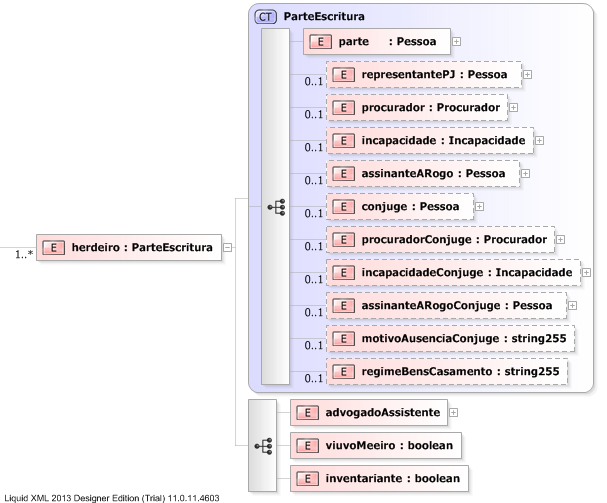

Collapse XSD Schema Diagram:
Drilldown into inventariante Drilldown into viuvoMeeiro Drilldown into advogadoAssistente Drilldown into regimeBensCasamento Drilldown into motivoAusenciaConjuge Drilldown into assinanteARogoConjuge Drilldown into incapacidadeConjuge Drilldown into procuradorConjuge Drilldown into conjuge Drilldown into assinanteARogo Drilldown into incapacidade Drilldown into procurador Drilldown into representantePJ Drilldown into parte Drilldown into ParteEscrituraXSD Diagram of herdeiro
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="herdeiro" maxOccurs="unbounded">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="nsS:ParteEscritura">
                <xs:sequence>
                    <xs:element name="advogadoAssistente">
                        <xs:complexType>
                            <xs:sequence>
                                <xs:element name="advogado" type="nsS:Pessoa" />
                                <xs:element name="numeroOAB" type="xs:int" />
                                <xs:element name="assistenciaJudiciaria" type="xs:boolean" />
                            </xs:sequence>
                        </xs:complexType>
                    </xs:element>
                    <xs:element name="viuvoMeeiro" type="xs:boolean" />
                    <xs:element name="inventariante" type="xs:boolean" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
parte nsS:parte (1) (1)
representantePJ nsS:representantePJ 0 (1)
procurador nsS:procurador 0 (1)
incapacidade nsS:incapacidade 0 (1)
assinanteARogo nsS:assinanteARogo 0 (1)
conjuge nsS:conjuge 0 (1)
procuradorConjuge nsS:procuradorConjuge 0 (1)
incapacidadeConjuge nsS:incapacidadeConjuge 0 (1)
assinanteARogoConjuge nsS:assinanteARogoConjuge 0 (1)
motivoAusenciaConjuge nsS:motivoAusenciaConjuge 0 (1)
regimeBensCasamento nsS:regimeBensCasamento 0 (1)
advogadoAssistente nsS:advogadoAssistente (1) (1)
viuvoMeeiro nsS:viuvoMeeiro (1) (1)
inventariante nsS:inventariante (1) (1)
Collapse Derivation Tree:
