<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="AtoArtigo183Lei6015" mixed="false">
<xs:complexContent mixed="false">
<xs:extension base="nsS:AtoSelado">
<xs:sequence>
<xs:element name="tipoFato" type="xs:string">
<xs:annotation>
<xs:documentation>Descrição do ato praticado incluindo, se for o caso, as matrículas envolvidas e demais informações.</xs:documentation>
<xs:appinfo>
<hj:basic xmlns:hj="http://hyperjaxb3.jvnet.org/ejb/schemas/customizations">
<orm:lob xmlns:orm="http://java.sun.com/xml/ns/persistence/orm" />
</hj:basic>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:choice>
<xs:element name="IDRegistro" type="nsS:string255">
<xs:annotation>
<xs:documentation>Identificação do registro.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="IDAverbacao" type="nsS:string255">
<xs:annotation>
<xs:documentation>Identificação da averbação.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:choice>
<xs:element name="tipoRegistroAverbacao" type="xs:int">
<xs:annotation>
<xs:documentation>Código do tipo de de registro/averbação, conforme tabela padronizada.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="protocolo" type="nsS:Protocolo">
<xs:annotation>
<xs:documentation>Dados do protocolo do registro/averbação.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="registro" type="nsS:Registro">
<xs:annotation>
<xs:documentation>Dados do registro/averbação.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="numeroAssento" type="nsS:string255">
<xs:annotation>
<xs:documentation>Número do Assento.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="numeroSeloEscritura" type="nsS:string255" minOccurs="0">
<xs:annotation>
<xs:documentation>Número de série do selo utilizado na Escritura.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="partes" type="nsS:ParteEscritura" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Dados e qualificação das partes.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="imovel" type="nsS:Imovel" minOccurs="0">
<xs:annotation>
<xs:documentation>Dados do imóvel.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="valorObjeto" minOccurs="0">
<xs:annotation>
<xs:documentation>Valor do objeto para atos praticados no registro auxiliar, que não se refiram a imóvel.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:decimal">
<xs:fractionDigits value="2" />
</xs:restriction>
</xs:simpleType>
</xs:element>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
|

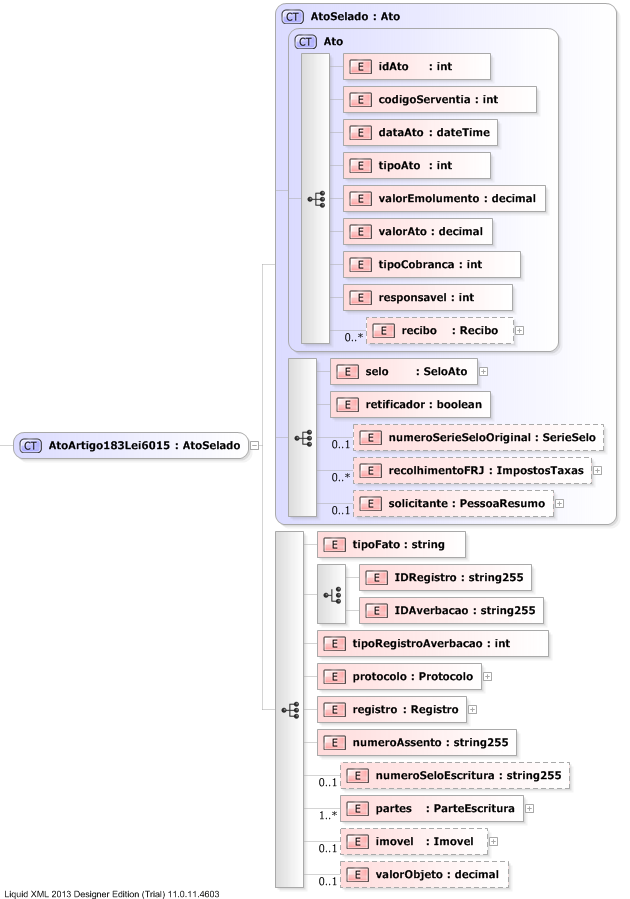

XSD Schema Diagram:
