<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="Ato" abstract="true">
<xs:annotation>
<xs:documentation>Ato define o conjunto padrão de elementos para todos os atos.</xs:documentation>
<xs:appinfo>
<hj:entity xmlns:hj="http://hyperjaxb3.jvnet.org/ejb/schemas/customizations">
<orm:sequence-generator name="Generator_ATO" sequence-name="SEQ_ATO" xmlns:orm="http://java.sun.com/xml/ns/persistence/orm" />
</hj:entity>
</xs:appinfo>
</xs:annotation>
<xs:sequence>
<xs:element name="idAto" type="xs:int">
<xs:annotation>
<xs:documentation>Código identificador do ato adotado internamente pelo sistema da serventia.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="codigoServentia" type="xs:int">
<xs:annotation>
<xs:documentation>Código da serventia, conforme tabela padronizada 3.2.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="dataAto" type="xs:dateTime">
<xs:annotation>
<xs:documentation>Data e hora em que o ato foi registrado e selado.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="tipoAto" type="xs:int">
<xs:annotation>
<xs:documentation>Código do tipo do Ato, conforme tabela padronizada 3.19.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="valorEmolumento">
<xs:annotation>
<xs:documentation>Valor dos emolumentos cobrados por este ato.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:decimal">
<xs:fractionDigits value="2" />
</xs:restriction>
</xs:simpleType>
</xs:element>
<xs:element name="valorAto">
<xs:annotation>
<xs:documentation>Valor total do ato, somando-se emolumentos, selo e intimações.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:decimal">
<xs:fractionDigits value="2" />
</xs:restriction>
</xs:simpleType>
</xs:element>
<xs:element name="tipoCobranca" type="xs:int">
<xs:annotation>
<xs:documentation>Tipo de cobrança, conforme tabela padronizada 3.20.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="responsavel" type="xs:int">
<xs:annotation>
<xs:documentation>Código do colaborador responsável pelo registro do ato.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="recibo" type="nsS:Recibo" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Recibos associados ao ato. Pode não haver, haver um ou mais de um. Mais detalhes em Comum.xsd.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
|

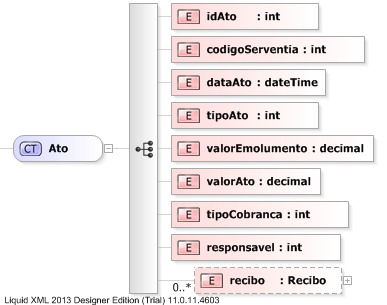

XSD Schema Diagram:
