Documentation for Selo Digital de Fiscalização v.2.0
Definition Type: ComplexType
Name: CAberturaMatricula
Namespace: http://www.tjsc.jus.br/selo/XMLSchema
Type: nsS:AtoSelado
Containing Schema: xsCAberturaMatricula.xsd
Abstract False

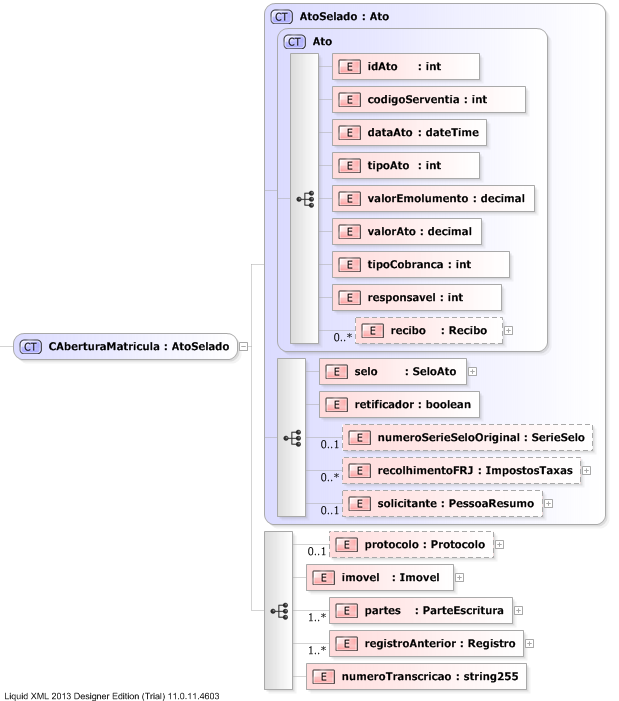

Collapse XSD Schema Diagram:
Drilldown into numeroTranscricao Drilldown into registroAnterior Drilldown into partes Drilldown into imovel Drilldown into protocolo Drilldown into solicitante Drilldown into recolhimentoFRJ Drilldown into numeroSerieSeloOriginal Drilldown into retificador Drilldown into selo Drilldown into recibo Drilldown into responsavel Drilldown into tipoCobranca Drilldown into valorAto Drilldown into valorEmolumento Drilldown into tipoAto Drilldown into dataAto Drilldown into codigoServentia Drilldown into idAto Drilldown into Ato Drilldown into AtoSeladoXSD Diagram of CAberturaMatricula
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CAberturaMatricula" mixed="false">
    <xs:complexContent mixed="false">
        <xs:extension base="nsS:AtoSelado">
            <xs:sequence>
                <xs:element name="protocolo" type="nsS:Protocolo" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>Dados do protocolo do registro/averbação.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="imovel" type="nsS:Imovel">
                    <xs:annotation>
                        <xs:documentation>Dados do imóvel.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="partes" type="nsS:ParteEscritura" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>Dados e qualificação das partes.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="registroAnterior" type="nsS:Registro" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>Dados dos registros anteriores/transcrições.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="numeroTranscricao" type="nsS:string255" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idAto nsS:idAto (1) (1)
codigoServentia nsS:codigoServentia (1) (1)
dataAto nsS:dataAto (1) (1)
tipoAto nsS:tipoAto (1) (1)
valorEmolumento nsS:valorEmolumento (1) (1)
valorAto nsS:valorAto (1) (1)
tipoCobranca nsS:tipoCobranca (1) (1)
responsavel nsS:responsavel (1) (1)
recibo nsS:recibo 0 unbounded
selo nsS:selo (1) (1)
retificador nsS:retificador (1) (1)
numeroSerieSeloOriginal nsS:numeroSerieSeloOriginal 0 (1)
recolhimentoFRJ nsS:recolhimentoFRJ 0 unbounded
solicitante nsS:solicitante 0 (1)
protocolo nsS:protocolo 0 (1)
imovel nsS:imovel (1) (1)
partes nsS:partes (1) unbounded
registroAnterior nsS:registroAnterior (1) unbounded
numeroTranscricao nsS:numeroTranscricao (1) (1)
Collapse Derivation Tree:
