Documentation for Selo Digital de Fiscalização v.2.0
Definition Type: ComplexType
Name: CNascimento
Namespace: http://www.tjsc.jus.br/selo/XMLSchema
Type: nsS:AtoSelado
Containing Schema: xsCNascimento.xsd
Abstract False

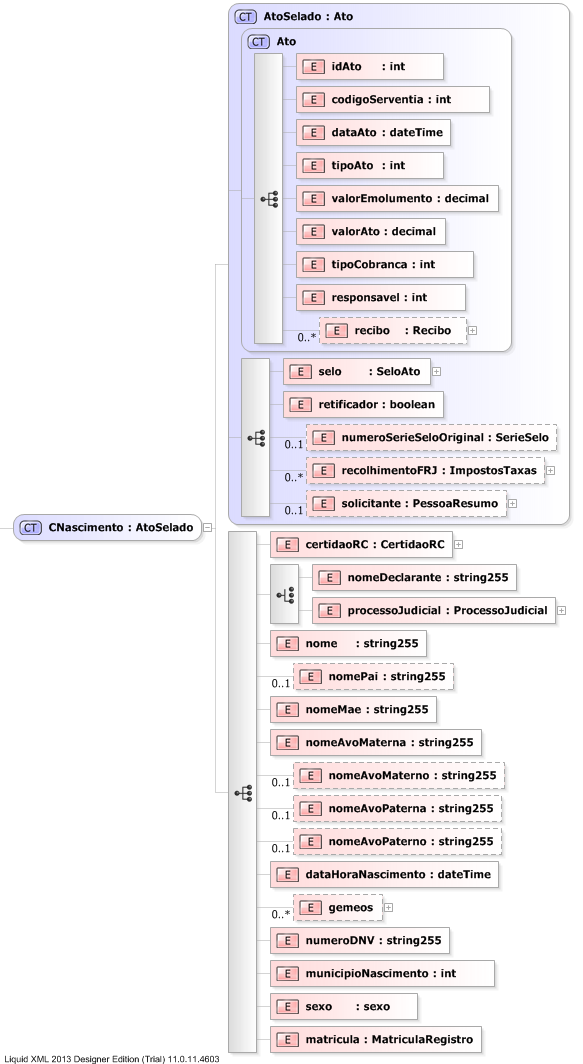

Collapse XSD Schema Diagram:
Drilldown into matricula Drilldown into sexo Drilldown into municipioNascimento Drilldown into numeroDNV Drilldown into gemeos Drilldown into dataHoraNascimento Drilldown into nomeAvoPaterno Drilldown into nomeAvoPaterna Drilldown into nomeAvoMaterno Drilldown into nomeAvoMaterna Drilldown into nomeMae Drilldown into nomePai Drilldown into nome Drilldown into processoJudicial Drilldown into nomeDeclarante Drilldown into certidaoRC Drilldown into solicitante Drilldown into recolhimentoFRJ Drilldown into numeroSerieSeloOriginal Drilldown into retificador Drilldown into selo Drilldown into recibo Drilldown into responsavel Drilldown into tipoCobranca Drilldown into valorAto Drilldown into valorEmolumento Drilldown into tipoAto Drilldown into dataAto Drilldown into codigoServentia Drilldown into idAto Drilldown into Ato Drilldown into AtoSeladoXSD Diagram of CNascimento
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CNascimento" mixed="false">
    <xs:complexContent mixed="false">
        <xs:extension base="nsS:AtoSelado">
            <xs:sequence>
                <xs:element name="certidaoRC" type="nsS:CertidaoRC" />
                <xs:choice>
                    <xs:element name="nomeDeclarante" type="nsS:string255" />
                    <xs:element name="processoJudicial" type="nsS:ProcessoJudicial" />
                </xs:choice>
                <xs:element name="nome" type="nsS:string255" />
                <xs:element name="nomePai" type="nsS:string255" minOccurs="0" />
                <xs:element name="nomeMae" type="nsS:string255" />
                <xs:element name="nomeAvoMaterna" type="nsS:string255" />
                <xs:element name="nomeAvoMaterno" type="nsS:string255" minOccurs="0" />
                <xs:element name="nomeAvoPaterna" type="nsS:string255" minOccurs="0" />
                <xs:element name="nomeAvoPaterno" type="nsS:string255" minOccurs="0" />
                <xs:element name="dataHoraNascimento" type="xs:dateTime">
                    <xs:annotation>
                        <xs:documentation>Data e hora do nascimento.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="gemeos" minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>Informações dos irmãos gêmeos, se houver.</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element name="nomeGemeo" />
                            <xs:element name="matriculaGemeo" type="nsS:MatriculaRegistro" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:element name="numeroDNV" type="nsS:string255" />
                <xs:element name="municipioNascimento" type="xs:int">
                    <xs:annotation>
                        <xs:documentation>Código da cidade, conforme tabela padronizada 3.15.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="sexo" type="nsS:sexo" />
                <xs:element name="matricula" type="nsS:MatriculaRegistro">
                    <xs:annotation>
                        <xs:documentation>Número de matrícula conforme padrão nacional CNJ (32 dígitos)
</xs:documentation>
                    </xs:annotation>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idAto nsS:idAto (1) (1)
codigoServentia nsS:codigoServentia (1) (1)
dataAto nsS:dataAto (1) (1)
tipoAto nsS:tipoAto (1) (1)
valorEmolumento nsS:valorEmolumento (1) (1)
valorAto nsS:valorAto (1) (1)
tipoCobranca nsS:tipoCobranca (1) (1)
responsavel nsS:responsavel (1) (1)
recibo nsS:recibo 0 unbounded
selo nsS:selo (1) (1)
retificador nsS:retificador (1) (1)
numeroSerieSeloOriginal nsS:numeroSerieSeloOriginal 0 (1)
recolhimentoFRJ nsS:recolhimentoFRJ 0 unbounded
solicitante nsS:solicitante 0 (1)
certidaoRC nsS:certidaoRC (1) (1)
nomeDeclarante nsS:nomeDeclarante (1) (1)
processoJudicial nsS:processoJudicial (1) (1)
nome nsS:nome (1) (1)
nomePai nsS:nomePai 0 (1)
nomeMae nsS:nomeMae (1) (1)
nomeAvoMaterna nsS:nomeAvoMaterna (1) (1)
nomeAvoMaterno nsS:nomeAvoMaterno 0 (1)
nomeAvoPaterna nsS:nomeAvoPaterna 0 (1)
nomeAvoPaterno nsS:nomeAvoPaterno 0 (1)
dataHoraNascimento nsS:dataHoraNascimento (1) (1)
gemeos nsS:gemeos 0 unbounded
numeroDNV nsS:numeroDNV (1) (1)
municipioNascimento nsS:municipioNascimento (1) (1)
sexo nsS:sexo (1) (1)
matricula nsS:matricula (1) (1)
Collapse Derivation Tree:
