Documentation for Selo Digital de Fiscalização v.2.0
Definition Type: ComplexType
Name: CNegativaBens
Namespace: http://www.tjsc.jus.br/selo/XMLSchema
Type: nsS:AtoSelado
Containing Schema: xsCNegativaBens.xsd
Abstract False

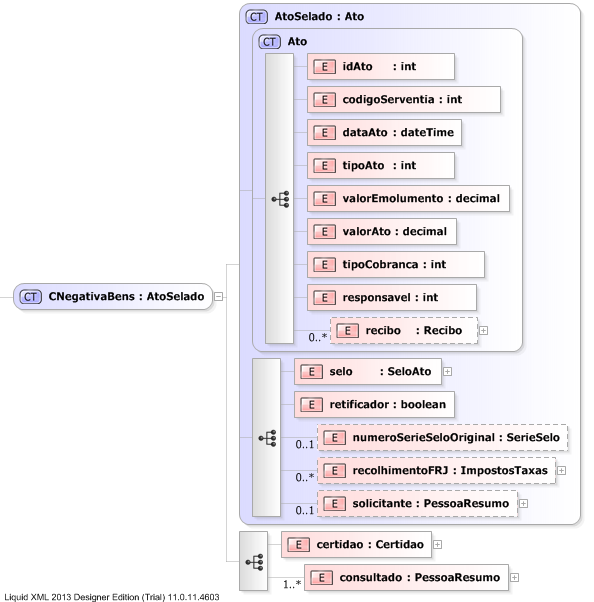

Collapse XSD Schema Diagram:
Drilldown into consultado Drilldown into certidao Drilldown into solicitante Drilldown into recolhimentoFRJ Drilldown into numeroSerieSeloOriginal Drilldown into retificador Drilldown into selo Drilldown into recibo Drilldown into responsavel Drilldown into tipoCobranca Drilldown into valorAto Drilldown into valorEmolumento Drilldown into tipoAto Drilldown into dataAto Drilldown into codigoServentia Drilldown into idAto Drilldown into Ato Drilldown into AtoSeladoXSD Diagram of CNegativaBens
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CNegativaBens" mixed="false">
    <xs:complexContent mixed="false">
        <xs:extension base="nsS:AtoSelado">
            <xs:sequence>
                <xs:element name="certidao" type="nsS:Certidao" />
                <xs:element name="consultado" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>Dados de cada um dos consultados nesta certidão.</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:complexContent>
                            <xs:extension base="nsS:PessoaResumo">
                                <xs:sequence>
                                    <xs:element name="bensEncontrados" type="xs:boolean">
                                        <xs:annotation>
                                            <xs:documentation>Indicar se foram encontrados bens para este consultado.</xs:documentation>
                                        </xs:annotation>
                                    </xs:element>
                                    <xs:element name="matricula" type="nsS:string255" minOccurs="0" maxOccurs="unbounded">
                                        <xs:annotation>
                                            <xs:documentation>Matrícula do imóvel, em caso positivo da existência de bens deste consultado.</xs:documentation>
                                        </xs:annotation>
                                    </xs:element>
                                    <xs:element name="registroAnterior" type="nsS:Registro" minOccurs="0" maxOccurs="unbounded">
                                        <xs:annotation>
                                            <xs:documentation>Dados do registro anterior/transcrições, em caso positivo da existência de bens deste consultado.</xs:documentation>
                                        </xs:annotation>
                                    </xs:element>
                                    <xs:element name="numeroTranscricao" type="nsS:string255" minOccurs="0" />
                                </xs:sequence>
                            </xs:extension>
                        </xs:complexContent>
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idAto nsS:idAto (1) (1)
codigoServentia nsS:codigoServentia (1) (1)
dataAto nsS:dataAto (1) (1)
tipoAto nsS:tipoAto (1) (1)
valorEmolumento nsS:valorEmolumento (1) (1)
valorAto nsS:valorAto (1) (1)
tipoCobranca nsS:tipoCobranca (1) (1)
responsavel nsS:responsavel (1) (1)
recibo nsS:recibo 0 unbounded
selo nsS:selo (1) (1)
retificador nsS:retificador (1) (1)
numeroSerieSeloOriginal nsS:numeroSerieSeloOriginal 0 (1)
recolhimentoFRJ nsS:recolhimentoFRJ 0 unbounded
solicitante nsS:solicitante 0 (1)
certidao nsS:certidao (1) (1)
consultado nsS:consultado (1) unbounded
Collapse Derivation Tree:
