Documentation for Selo Digital de Fiscalização v.2.0
Definition Type: ComplexType
Name: CObito
Namespace: http://www.tjsc.jus.br/selo/XMLSchema
Type: nsS:AtoSelado
Containing Schema: xsCObito.xsd
Abstract False

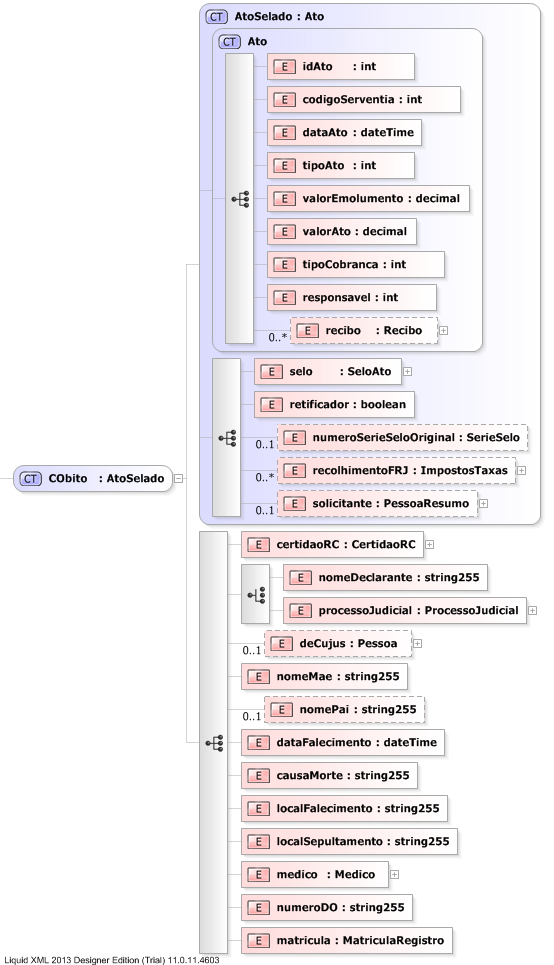

Collapse XSD Schema Diagram:
Drilldown into matricula Drilldown into numeroDO Drilldown into medico Drilldown into localSepultamento Drilldown into localFalecimento Drilldown into causaMorte Drilldown into dataFalecimento Drilldown into nomePai Drilldown into nomeMae Drilldown into deCujus Drilldown into processoJudicial Drilldown into nomeDeclarante Drilldown into certidaoRC Drilldown into solicitante Drilldown into recolhimentoFRJ Drilldown into numeroSerieSeloOriginal Drilldown into retificador Drilldown into selo Drilldown into recibo Drilldown into responsavel Drilldown into tipoCobranca Drilldown into valorAto Drilldown into valorEmolumento Drilldown into tipoAto Drilldown into dataAto Drilldown into codigoServentia Drilldown into idAto Drilldown into Ato Drilldown into AtoSeladoXSD Diagram of CObito
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CObito" mixed="false">
    <xs:complexContent mixed="false">
        <xs:extension base="nsS:AtoSelado">
            <xs:sequence>
                <xs:element name="certidaoRC" type="nsS:CertidaoRC" />
                <xs:choice>
                    <xs:element name="nomeDeclarante" type="nsS:string255" />
                    <xs:element name="processoJudicial" type="nsS:ProcessoJudicial" />
                </xs:choice>
                <xs:element name="deCujus" type="nsS:Pessoa" minOccurs="0" />
                <xs:element name="nomeMae" type="nsS:string255" />
                <xs:element name="nomePai" type="nsS:string255" minOccurs="0" />
                <xs:element name="dataFalecimento" type="xs:dateTime">
                    <xs:annotation>
                        <xs:documentation>Data e hora do falecimento.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="causaMorte" type="nsS:string255" />
                <xs:element name="localFalecimento" type="nsS:string255" />
                <xs:element name="localSepultamento" type="nsS:string255" />
                <xs:element name="medico" type="nsS:Medico" />
                <xs:element name="numeroDO" type="nsS:string255">
                    <xs:annotation>
                        <xs:documentation>Número da Declaração de Óbito</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="matricula" type="nsS:MatriculaRegistro">
                    <xs:annotation>
                        <xs:documentation>Número de matrícula conforme padrão nacional CNJ (32 dígitos)
</xs:documentation>
                    </xs:annotation>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idAto nsS:idAto (1) (1)
codigoServentia nsS:codigoServentia (1) (1)
dataAto nsS:dataAto (1) (1)
tipoAto nsS:tipoAto (1) (1)
valorEmolumento nsS:valorEmolumento (1) (1)
valorAto nsS:valorAto (1) (1)
tipoCobranca nsS:tipoCobranca (1) (1)
responsavel nsS:responsavel (1) (1)
recibo nsS:recibo 0 unbounded
selo nsS:selo (1) (1)
retificador nsS:retificador (1) (1)
numeroSerieSeloOriginal nsS:numeroSerieSeloOriginal 0 (1)
recolhimentoFRJ nsS:recolhimentoFRJ 0 unbounded
solicitante nsS:solicitante 0 (1)
certidaoRC nsS:certidaoRC (1) (1)
nomeDeclarante nsS:nomeDeclarante (1) (1)
processoJudicial nsS:processoJudicial (1) (1)
deCujus nsS:deCujus 0 (1)
nomeMae nsS:nomeMae (1) (1)
nomePai nsS:nomePai 0 (1)
dataFalecimento nsS:dataFalecimento (1) (1)
causaMorte nsS:causaMorte (1) (1)
localFalecimento nsS:localFalecimento (1) (1)
localSepultamento nsS:localSepultamento (1) (1)
medico nsS:medico (1) (1)
numeroDO nsS:numeroDO (1) (1)
matricula nsS:matricula (1) (1)
Collapse Derivation Tree:
