Documentation for Selo Digital de Fiscalização v.2.0
Definition Type: ComplexType
Name: CNegativa
Namespace: http://www.tjsc.jus.br/selo/XMLSchema
Type: nsS:AtoSelado
Containing Schema: xsCNegativa.xsd
Abstract False

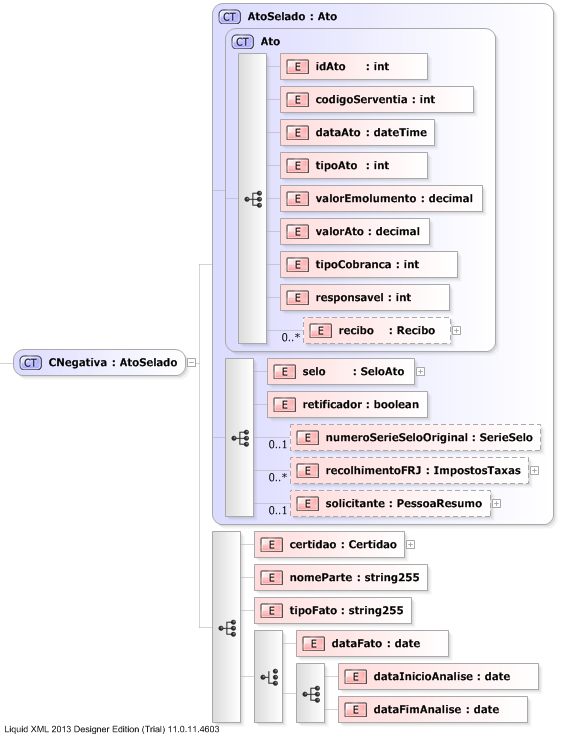

Collapse XSD Schema Diagram:
Drilldown into dataFimAnalise Drilldown into dataInicioAnalise Drilldown into dataFato Drilldown into tipoFato Drilldown into nomeParte Drilldown into certidao Drilldown into solicitante Drilldown into recolhimentoFRJ Drilldown into numeroSerieSeloOriginal Drilldown into retificador Drilldown into selo Drilldown into recibo Drilldown into responsavel Drilldown into tipoCobranca Drilldown into valorAto Drilldown into valorEmolumento Drilldown into tipoAto Drilldown into dataAto Drilldown into codigoServentia Drilldown into idAto Drilldown into Ato Drilldown into AtoSeladoXSD Diagram of CNegativa
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CNegativa" mixed="false">
    <xs:complexContent mixed="false">
        <xs:extension base="nsS:AtoSelado">
            <xs:sequence>
                <xs:element name="certidao" type="nsS:Certidao" />
                <xs:element name="nomeParte" type="nsS:string255" />
                <xs:element name="tipoFato" type="nsS:string255" />
                <xs:choice>
                    <xs:element name="dataFato" type="xs:date" />
                    <xs:sequence>
                        <xs:element name="dataInicioAnalise" type="xs:date" />
                        <xs:element name="dataFimAnalise" type="xs:date" />
                    </xs:sequence>
                </xs:choice>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idAto nsS:idAto (1) (1)
codigoServentia nsS:codigoServentia (1) (1)
dataAto nsS:dataAto (1) (1)
tipoAto nsS:tipoAto (1) (1)
valorEmolumento nsS:valorEmolumento (1) (1)
valorAto nsS:valorAto (1) (1)
tipoCobranca nsS:tipoCobranca (1) (1)
responsavel nsS:responsavel (1) (1)
recibo nsS:recibo 0 unbounded
selo nsS:selo (1) (1)
retificador nsS:retificador (1) (1)
numeroSerieSeloOriginal nsS:numeroSerieSeloOriginal 0 (1)
recolhimentoFRJ nsS:recolhimentoFRJ 0 unbounded
solicitante nsS:solicitante 0 (1)
certidao nsS:certidao (1) (1)
nomeParte nsS:nomeParte (1) (1)
tipoFato nsS:tipoFato (1) (1)
dataFato nsS:dataFato (1) (1)
dataInicioAnalise nsS:dataInicioAnalise (1) (1)
dataFimAnalise nsS:dataFimAnalise (1) (1)
Collapse Derivation Tree:
